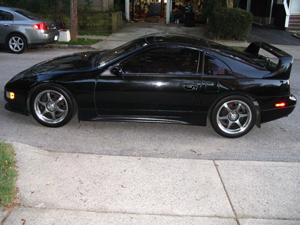

1990 300ZX Twin Turbo

Model Year: 1990 - ROLLING CHASSIS + 2 ENGINES (NEED REBUILD)

Mileage: N/A – RACE CAR, ~ 90K Miles on Chassis, JDM Engine (~40K Miles) NEEDS REBUILD

Transmission: Manual, 5 speed

Interior Color: Black, Charcoal Gray, Leather

Exterior Color: Black



Engine and Drive Train

2 Engines Included - BOTH MUST BE REBUILT

(Sunbelt Engine, described below and pictured, and JDM engine installed)

JWT Sport 500 Turbos (re-built by John Meyers Racing)

Stillen 555cc fuel injectors

Stillen Intercoolers

Stillen ECU and boost jets

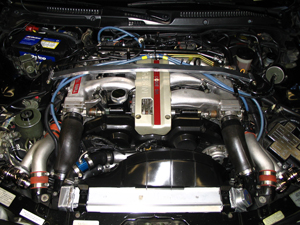

Sunbelt Racing Engine

Fully balanced and blueprinted (dyno tested on bench)

Sunbelt Racing “Race Chip”

Z32 block, bored & polished (5mm) over

10:1 compression ratio

Ceramic coated JWT pistons (over sized)

5 angle valve job on heads

Ported and polished intake runners

ARP rod bolts

Custom ground cams

Performance springs

Cam timing to race specs

Twin Stillen high flow intake

Stillen high capacity oil cooler

Stillen lower radiator hose

Centerforce Kevlar extreme duty clutch

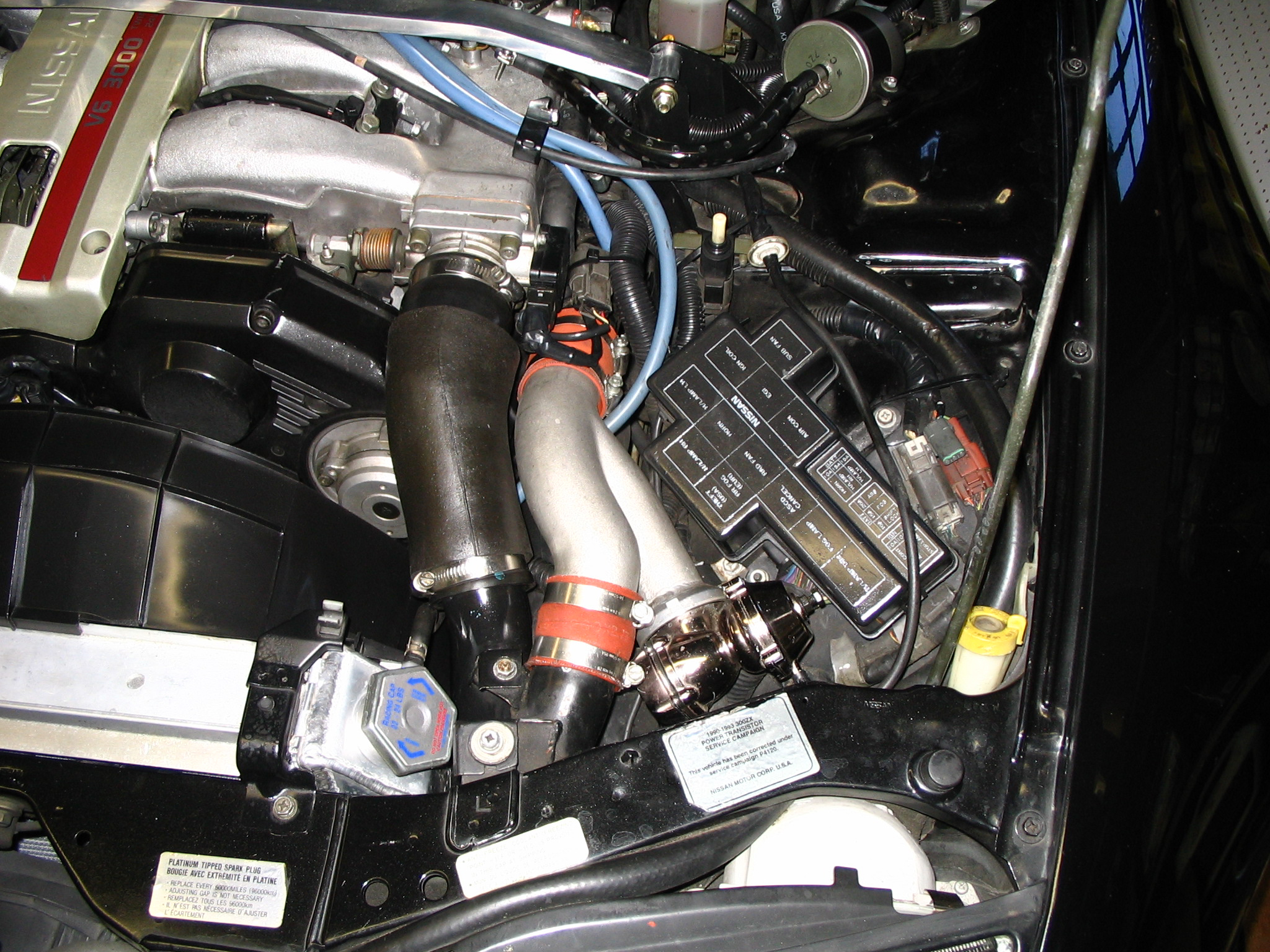

Sequential Blow of Valves

Gutted Cats, and HighFlow Cats (New)

Stillen Stainless Steel Exhaust System

NGK Racing Plugs

Lubricants/Fluids

Red Line Synthetic Oils, replaced after every event

MOTUL 600 Brake fluid

93 Octane Gas for up to 12 psi

110 Octane Race gas for up to 17+ psi - I never had to go past 17 psi, although the motor is rated to 21 psi



Suspension

Front Shock-Tower Brace

Eibach Pro Kit Springs

Tokico 5 way Adjustable Shocks

Stillen Sway bars (28mm front - 21mm rear)

Stillen Adjustable Upper A Arms

Stillen Adjustable Tension Rods

Stillen Adjustable rear arms

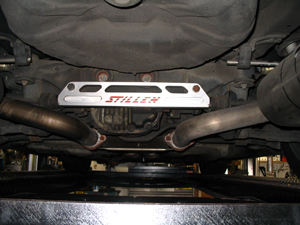

Stillen Hicas Eliminator



Brakes

Stillen (Goodridge) stainless steel brake lines

Nissan Skyline front rotors and calipers

Stillen Sport Rotors (rear)

Hawk Blue brake pads

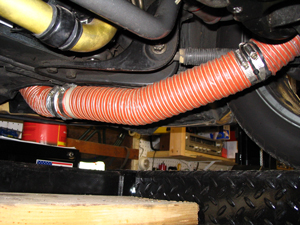

3”x5” NACA ducts & neoprene tubes to front calipers



Wheels and Tires

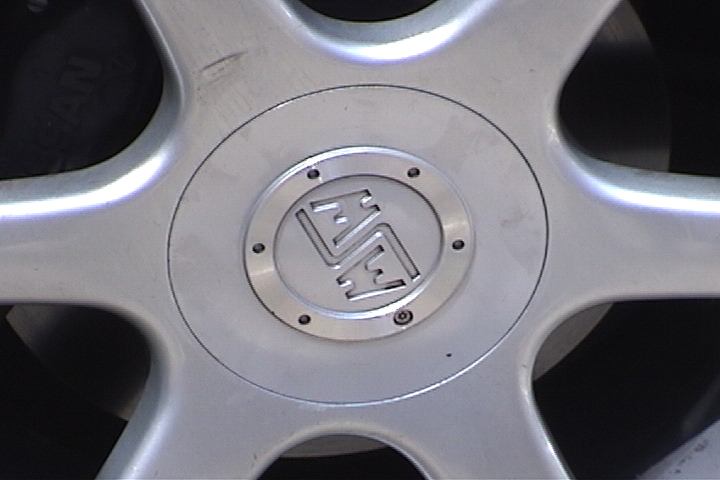

17” MSW Racing Wheels

Kuhmo Victor Racer 245-45-17 front (25% thread life)

Kuhmo Victor Racer 275-45-17 rear (25% thread life)



Electronics

HKS Turbo Timer

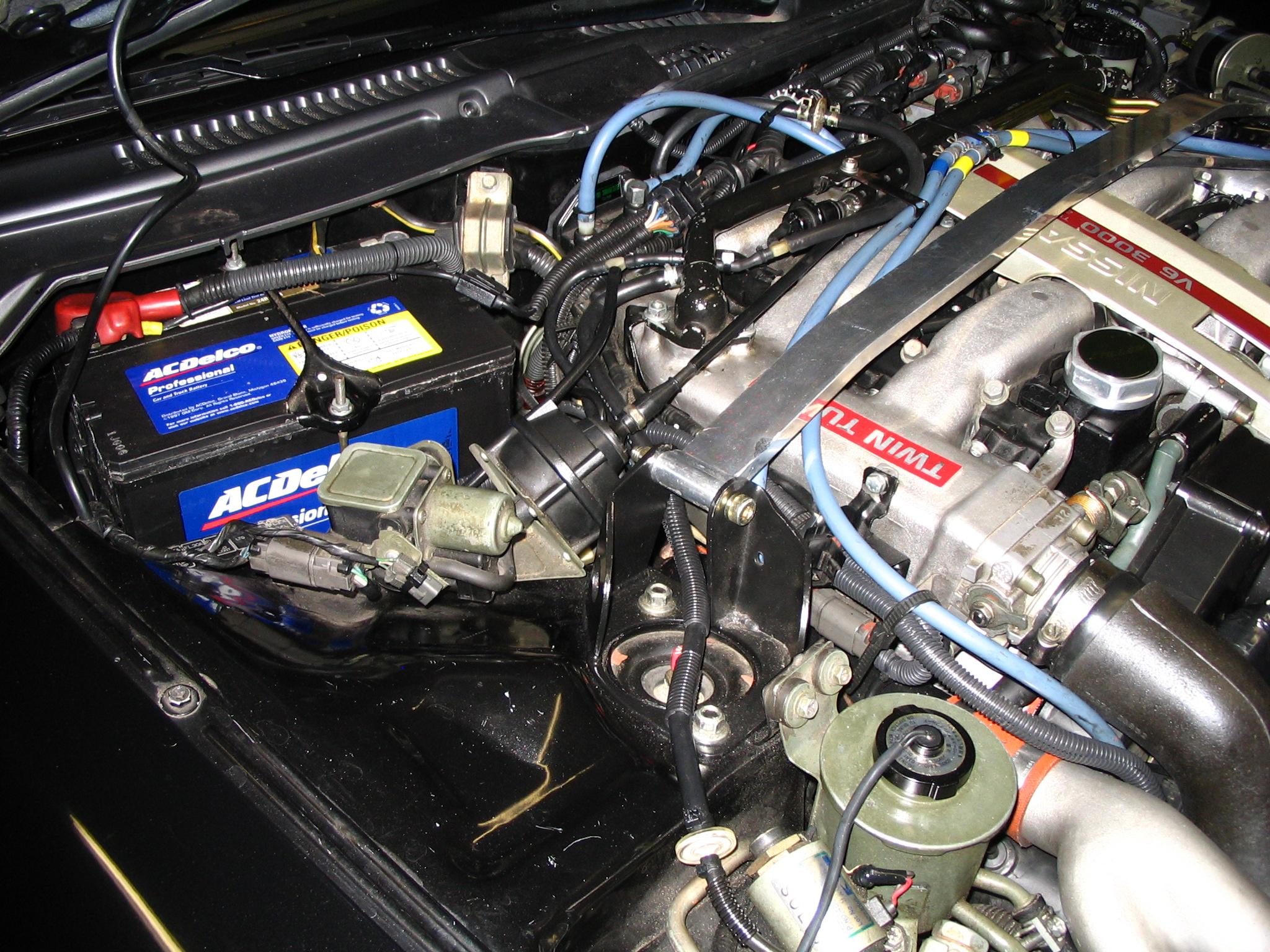

HKS Electronic Valve Controller (Boost Controller) (see picture, blue hose leading to firewall)

Stillen ECU

Sunbelt Racing “Race Chip”



Aerodynamics

Stillen GTZ Rear Wing

SMZ front spoiler

SMZ side skirts

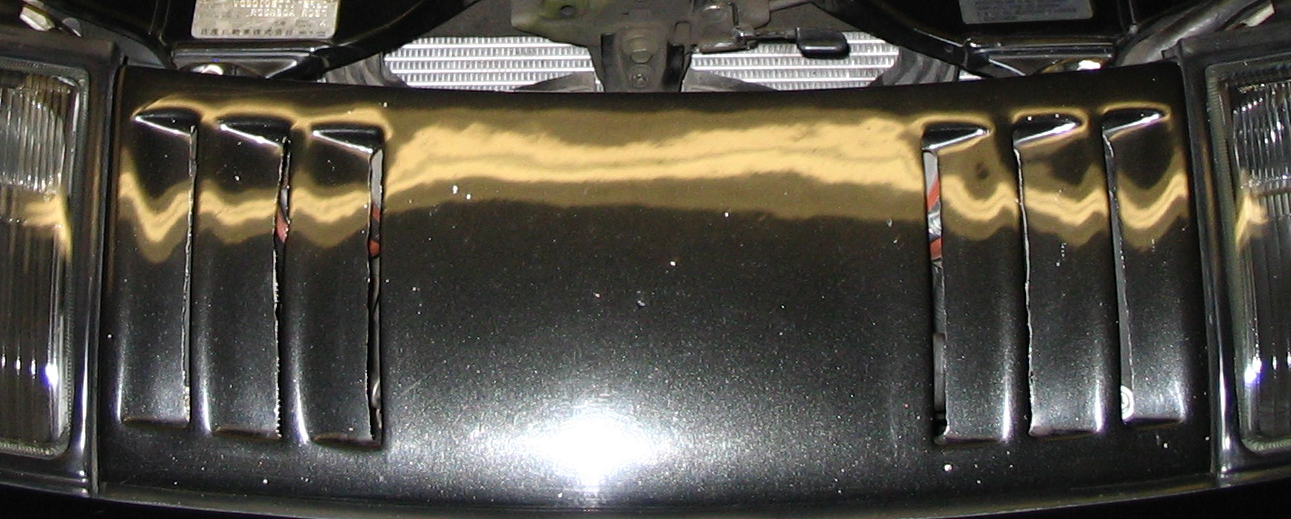

SMZ Louvered Panel (functional)

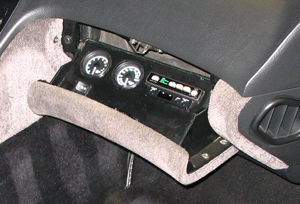

Auxiliary Gauges

Exhaust Temp Gauge (Glove Box)

Oil Pressure Gauge (Not Installed)

Greddy Water Temperature (Glove Box)

HKS Boost Gauge (A Pillar)

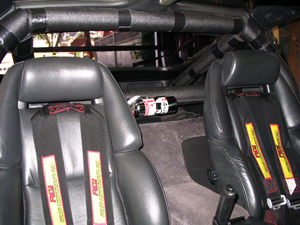

Safety

5 Point Racing Harness

4 Point Roll Cage (J&P Chassis works)

Aluminum competition pedals

Fire Extinguisher (Cage Mounted)

Long Acres Convex Mirror



Other Items

Complete Shop Manual

Folder with car receipts and repair records

Original Radio/Tape Deck Unit

Installed Alpine CD/Radio Unit

300W Amplifier (does not work)

2 Trunk Subwoofer/Tweeter Combo Boxes (Installed in Trunk)

Car Cover

Complete Air-conditioning Setup (Not Installed)

New front Fog Light Assembly (Left and Right)

New front Side Marker/Driving Light Assembly (Left and Right)

New Center Console Box Cover

New Rear Brake light panel assembly

Lean Chip and Injectors Set-up

Spare antenna mast



Spares

BFG R1 Racing tires (used, about 25%-50% thread life, Qty. 6)

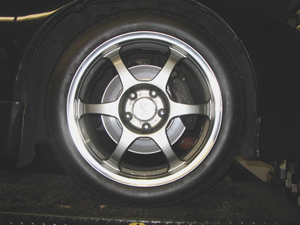

17” Super light-weight SSR Racing Wheels

Kuhmo Victor Racer 245-45-17 front (75% thread life)

Kuhmo Victor Racer 275-45-17 rear (50% thread life)

2 sets of PIAA Auxiliary Driving Lights (for night events)

Set of front NEW Hawk Blue brake pads

Intercoolers

Engine and Cooling System Hose Kit

Intake Gaskets
